NOT GATE Project | Electronic Circuit

DIY-school-Project

  • Product SKU : IB0048
  • Availability : In Stock (100)

  • Rs. 470/PCs.    (MRP:999)

    Inclusive of all taxes.

  • 0 Reviews
  • Write a review

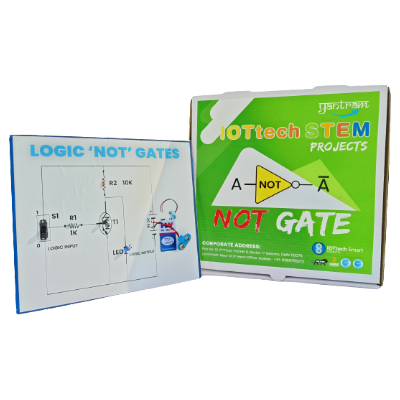

    • This NOT gate is an inverter or a complimentary which gives the complemented output of the input applied which means it gives high output when input is low or vice-versa. This Circuit contains the slider switches followed by a diode for input and when the slide connection changes the inputs according to the truth table the LED is used to display the output followed by a resistor. A detailed synopsis is given with the project for further understanding.

    Features:

    1. Inverter or complimentary
    2. Gives complemented output of the input applied
    3. High output when input is low or vice-versa
    4. Contains slider switches followed by a diode for input
    5. LED used to display the output
    6. Resistor used to protect the LED
    7. Detailed synopsis included

    Specifications:

    1. Input voltage: 5V
    2. Output voltage: 5V
    3. Current: 20mA
    4. LED color: Red
    5. Resistor value: 220Ω
